Heat Shrinkable Seal Fiber Optic Splice Closure

288 Core Horizontal Joint Splicing Box

This product is fber optic splice closure DOME that can be used for protection of various through and branch boxes. This

type of joint sleeve is sealed with mechanical seal and can be used for underground installation, manhole, pole, wall hanging

Mechanical sealing structure.

2. High quality industrial plastic body material.

3.1 oval hole and 6 round holes for cable entrance.

4. Suitable for cable diameter of 10 mm - 18mm.

5. Support underground installation, manhole, pole, wall hanging, and overhead installation.

6. The protection grade reaches IP68.

7. 360 degrees access, Fiber bending radius > 40mm.

8. Maximum capacity: 288 fibers.

9. Number of splice trays: 12 pcs x 24 F.

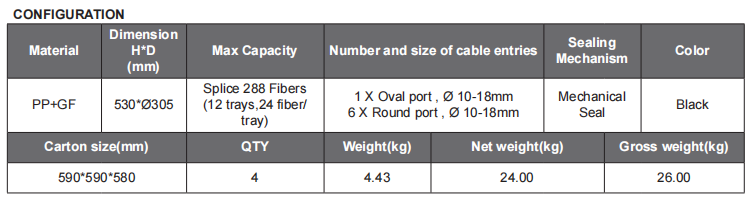

Outside dimension(Height x Diameter)

515mm×310mm

Weight (excluding outside box)

3000g— 4600g

Number of inlets/outlets

7 pieces in general

Diameter of fiber cable

Φ5mm～Φ38mm

Capacity of FOSC Bunchy:

24-288 (cores)

Ribbon:

up to 864(cores)

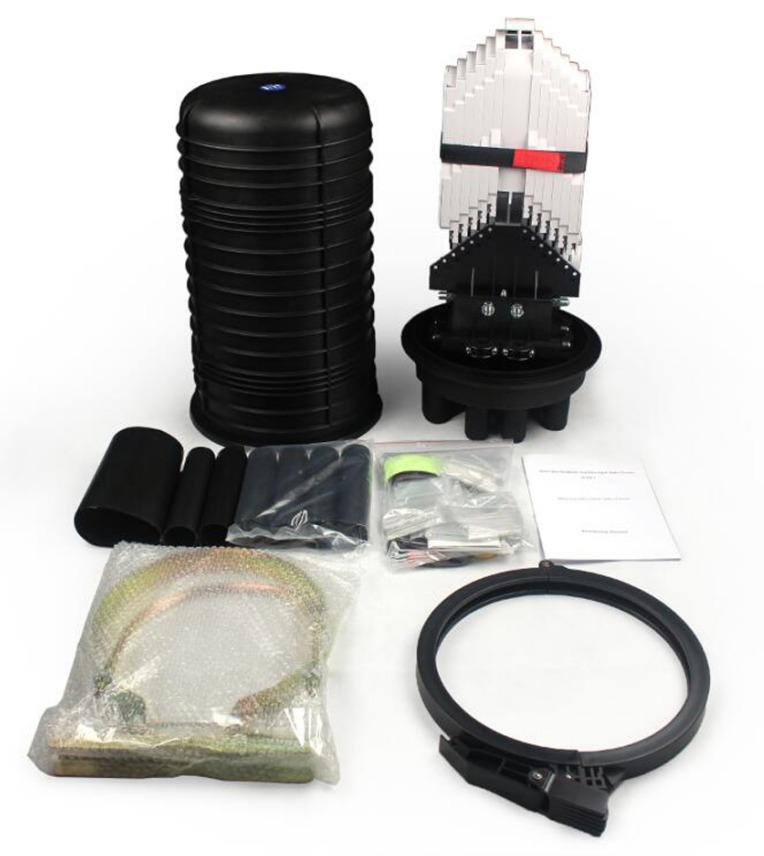

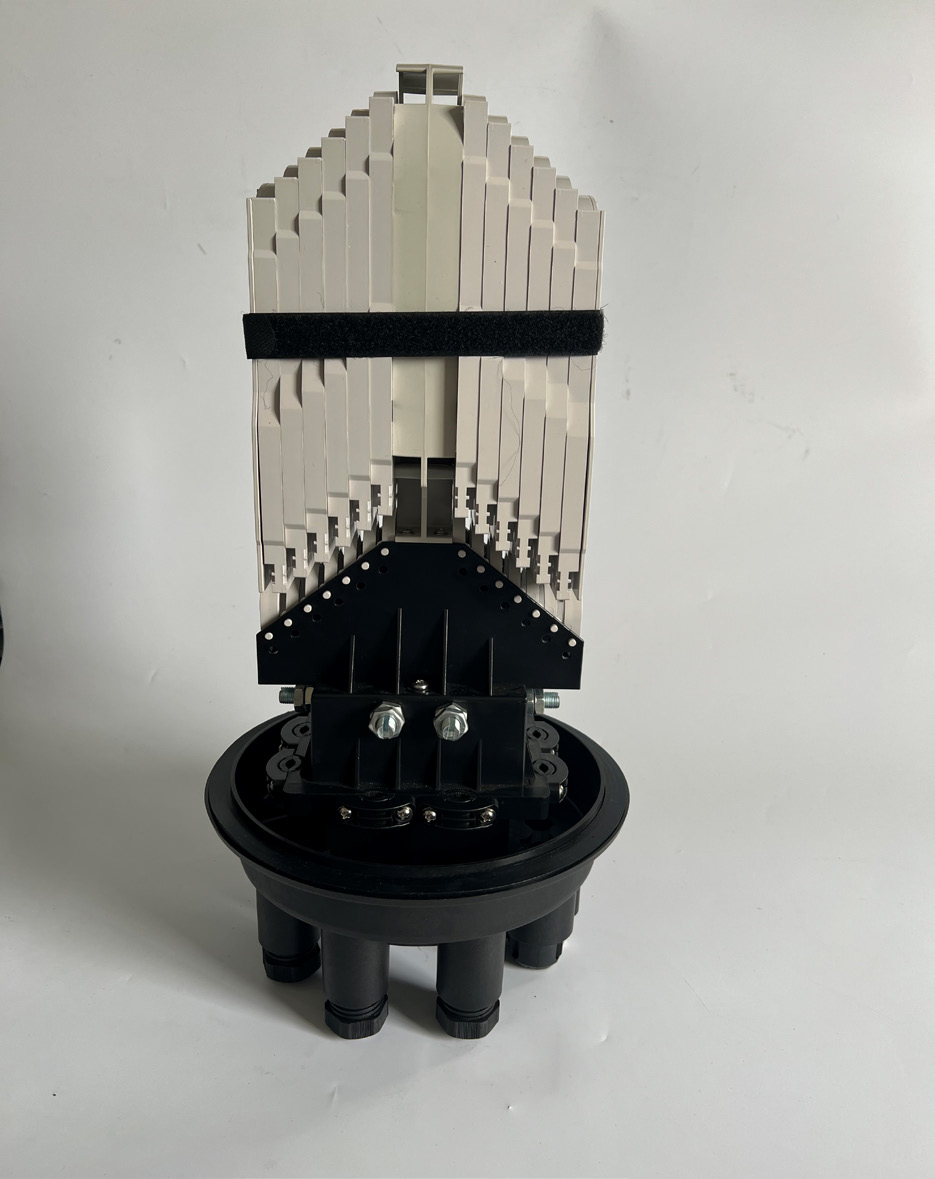

Heat Shrinkable Seal Fiber Optic Splice Closure Images
