New Style Wall-mounting 12 Core Fiber Optics Distribution IP65 Terminal Box
Products Description
The equipment is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
8
Standards Comply
The production offered by ALT are designed, manufactured and tested according to the standards as follows:
| ITU-T G.652 | Characteristics of a single-mode optical fibre |
| IEC 60794-1-1 | Optical fibre cables-part 1-1: Generic specification-General |
| IEC 60794-1-2 | Optical fibre cables-part 1-2: Generic specification-Basic optical cable test procedure |
Applications Environment
| Item | Value |
| Operation temperature | -40 ºC~+65 ºC |
| Installation temperature | -5 ºC~+40 ºC |
| Storage temperature | -40ºC~+65 ºC |
| Atmospheric pressure | 70~106Kpa |
| Relative humidity | ≤93%(+40℃) |
Feature:
- Total enclosed structure.
- Material: PC+ABS,wet-proof,water-proof,dust-proof,anti-aging, protection level up to IP54.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
- Cable,pigtails,patch cords are running through own path without disturbing each other, cassette type SC adaptor installation, easy maintenance.
- Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way, easy for maintenance and installation.
- Cabinet can be installed by the way of wall-mounted .
Specification:
| Mechanical specifications |
| Item | Specifications | Remark |
| External dimension(mm) | 151.8*105.7*59 | |
| Installation hole position(mm) | 141 | |
| Color | PANTONE 428C | Customizable |
| Size and quantity of optical cable hole | Optical cable straight through without cutting | |
| Input type/type of output | SC adapter | |
| Capacity(Max) | 12 cores | |
| Into the largest cable diameter (mm) | ᴓ12 | |
| Cable outlet size(mm) | 2*3~ᴓ5 | |
| IP protection level | IP54 | |
| Flammability | HB(Conventional) | can be customized according to requirements |
| Neutral salt spray test (NSS) | 48 h |
Configuration
| Main parts |
| Part name | Unit | Quantity | Note |
| 1*8 PLC Splitter | pcs | 1 | |
| SC adapter | pcs | 8 | |

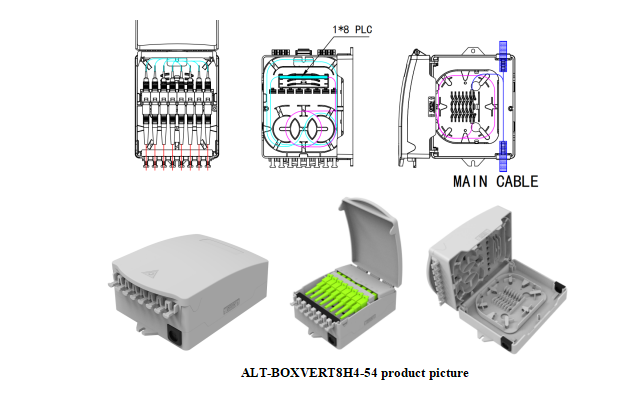

Installation:
Package
1 PC in a bubble bag,220*200mm;
1 PC in a small carton,160*110*65mm, gross weight is 0.35 kg;
50 PCS in a big corrugated carton,570*340*355 mm, gross weight is 18kg.
Detailed Images
Junpu Fiber Optic Distribution Box Series
About the Company
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, our products offer 1-2 years warranty.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as you requested.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
We sincerely invite you to send us an inquiry for further details!
Junpu Cares About Every Single Details Of The Product For You!
|
|

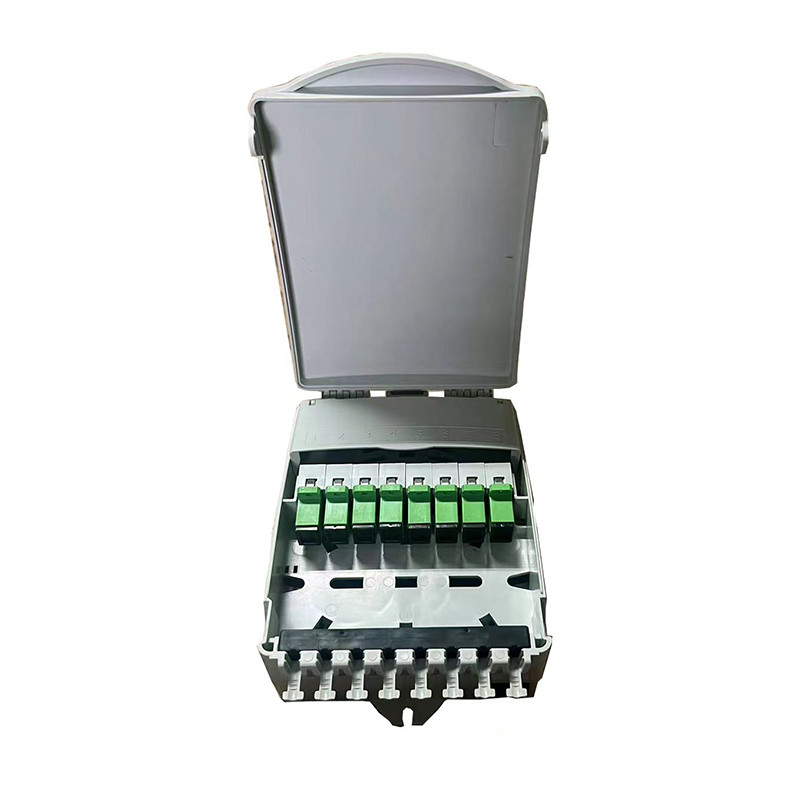

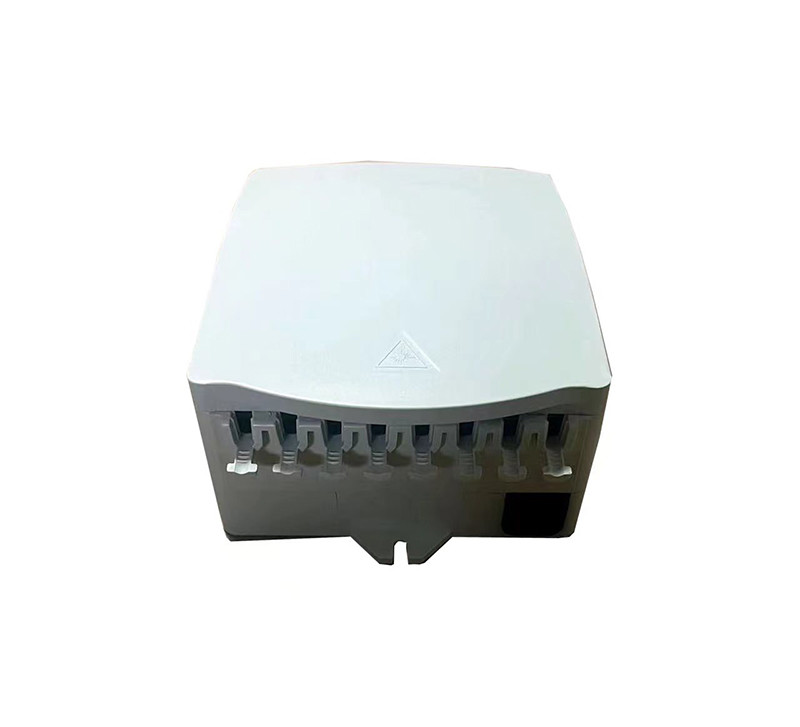

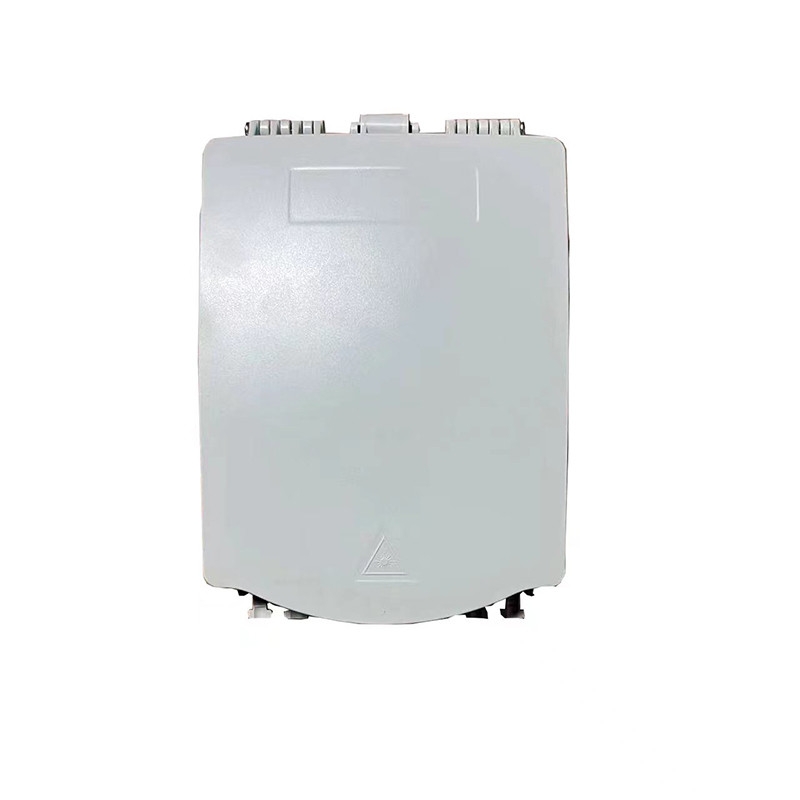

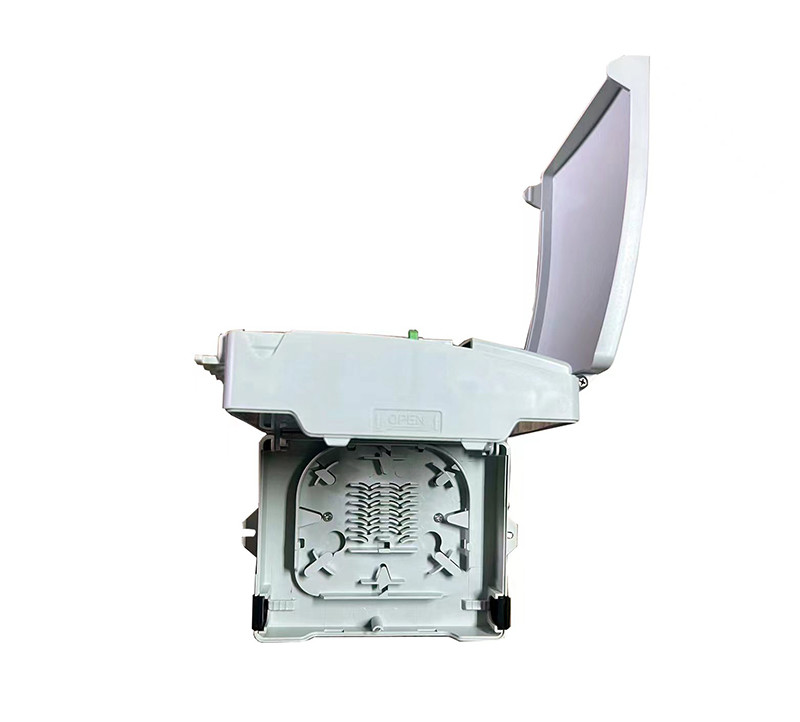

New Style Wall-mounting 12 Core Fiber Optics Distribution IP65 Terminal Box Images
|
