Wall/Pole/Aerial 16 Core Optical Fiber Cable Joint Closure, PP+GF Material IP68
16 Core Fiber Termination Box Features:
* Easy to operate. Usually installed as wall mounted in the building or at the green belt.
* The optical splitter module is designed of modular drawer type, and it has high interchangeability and generality.
* Fixed cable and protection.
* Protect optical fiber splice joint.
* Termination function of the fiber core.
16 Core Fiber Termination Box Application:
It can be installed in aerial locations, ducted applications, direct buried, and manholes.
Small volume but large capacity.
Specification:
| Model | Dia.(mm) Biggest Point | Max Capacity | No. Of Ports | Available Splitter | Max. Adapter Number |
| CFO-16S-NAP | 359*277*120 | 48 fibers 24F/Tray | 2pcs round on both side: for 8-12mm 16pcs fast connector ports for drop cable | 1pc 1*16 or 2pcs 1*8 Mini PLC Splitter | 16 |
Package:
| Packing Nunber(pcs) | Outer Box Size(mm) | Weight(kg) |
| 8 | 540*630*425 | 1.8-2.5 |
FAQ:
Q1: Are you a factory?
A: Yes, we are a factory.
Q2: what's your products' quality control?
1. Control the raw material, manpower allocation, working environments, equipment, etc.
2. Improve the working standard, cooperation, training of workers, etc.
Q3: Do you offer a guarantee for the products?
A: Yes, we offer 1-2 years warranty on our products.
Q4: Could you offer the OEM service?
A: Yes, we can provide OEM service, and manufacture as per your request.
Q5. May I take a sample order
A: Yes, free samples are available and MOQ is 1 piece.
Q6. What about the lead time?
A: Sample takes 3 days, mass production time takes 7-15 days for bulk order.
Q7. What about the shipment?
A: International Express - DHL, UPS, FedEx, or TNT.
Airline.
Sea/Marine shipping.
Junpu Fiber Optic Distribution Box Series
We sincerely invite you to send us an inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You!
|
|

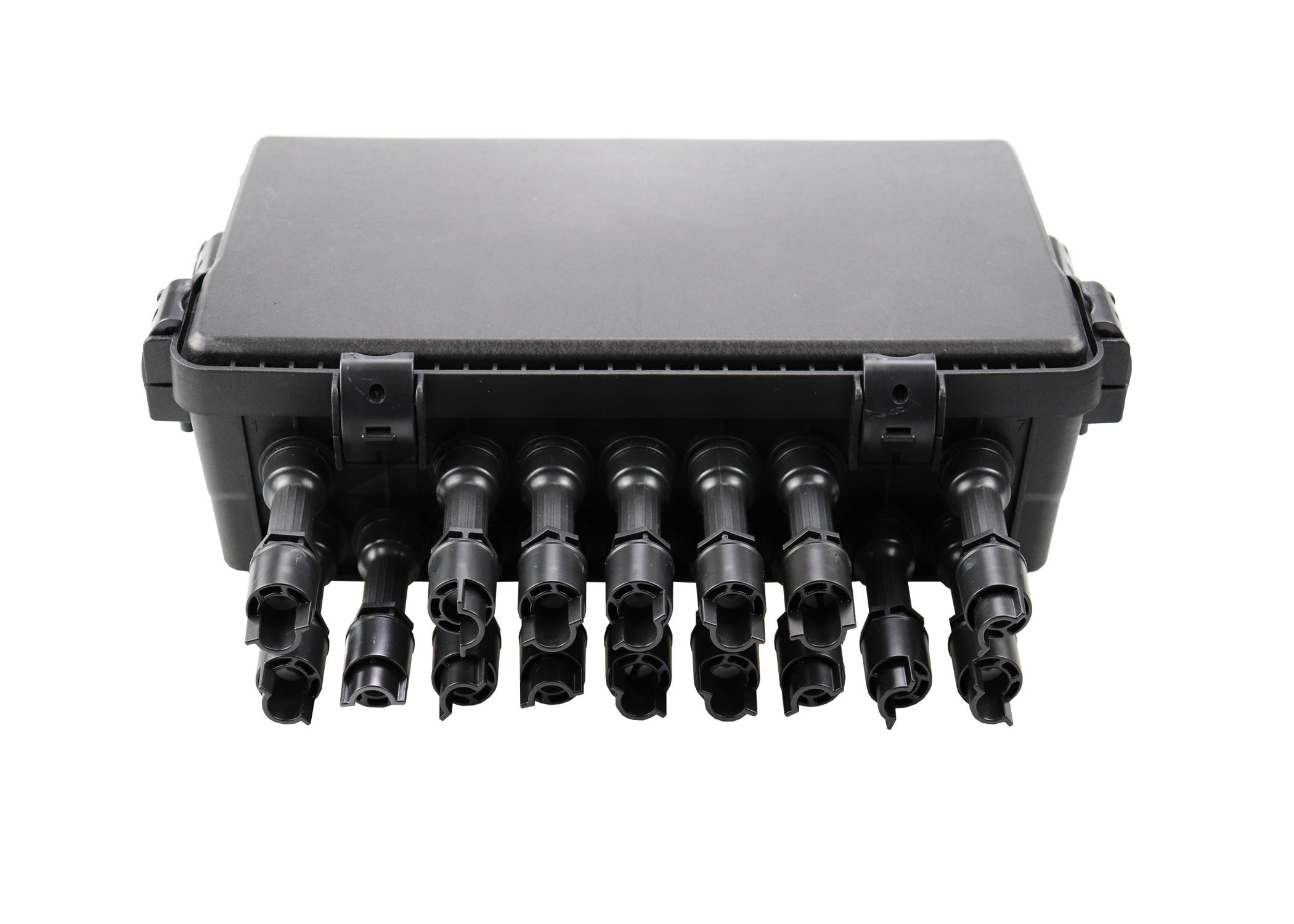

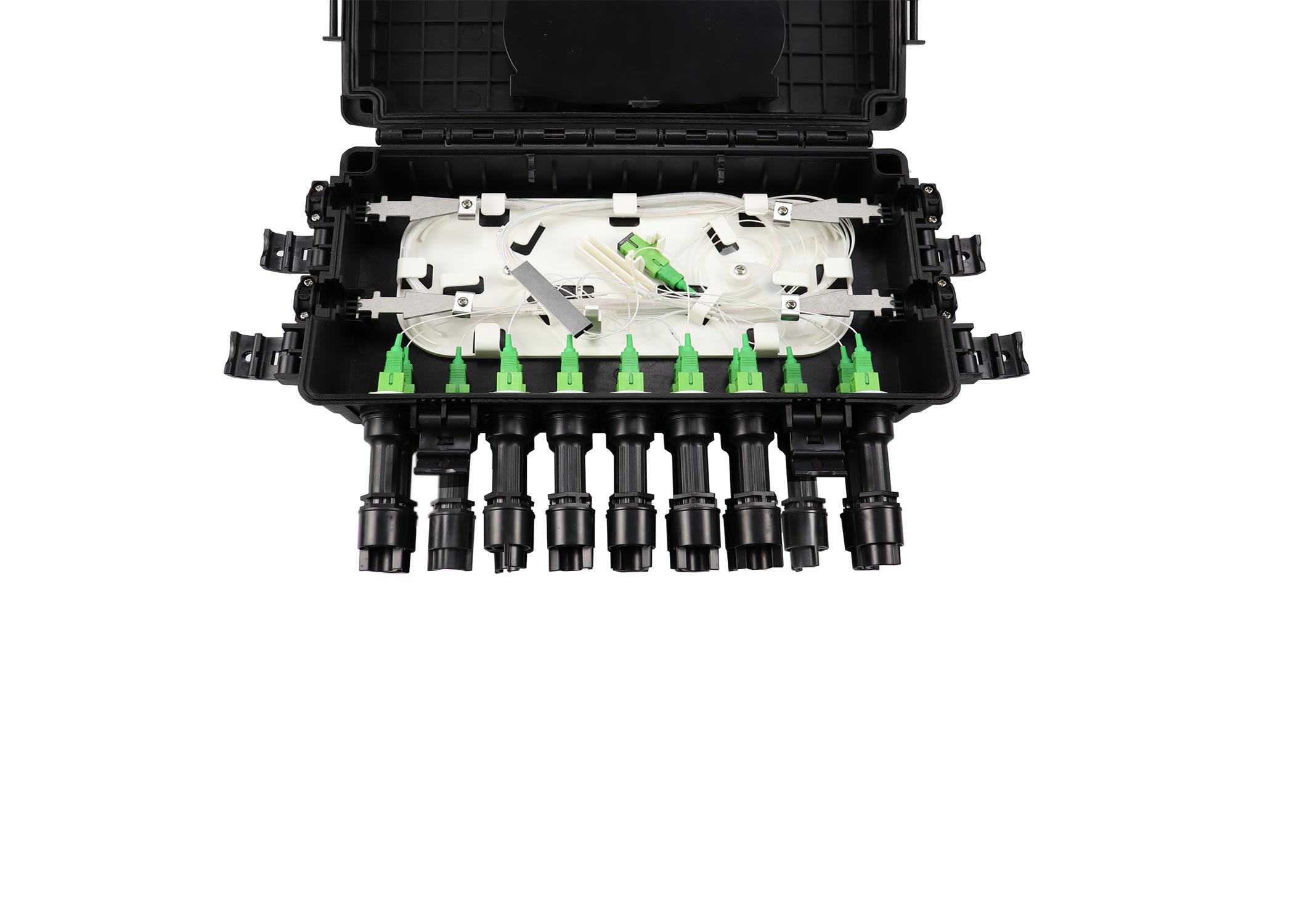

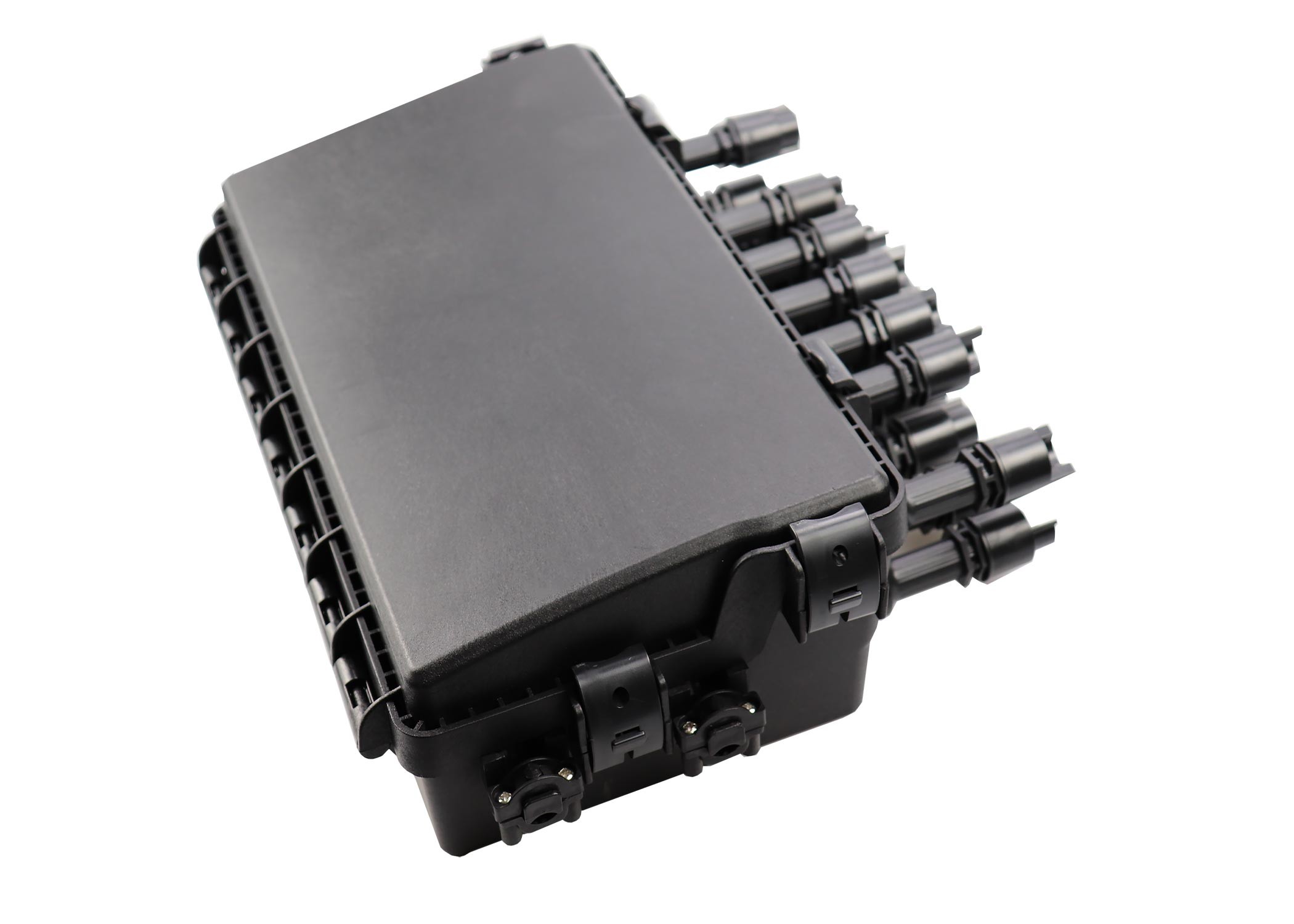

wall/pole/aerial 16 core optical fiber cable joint closure, PP+GF material IP68 Images
|
