GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting

Name: GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self Supporting
Brand: JUNPU
Price: 1 USD

Brand Name : JUNPU

Model Number : Outdoor Figure 8 Core Fiber Optical Cable

Certification : ROHS, CE, CCC

Place of Origin : China

Payment Terms : T/T

Supply Ability : 30000 Kilometer/Kilometers per Week

Delivery Time : 1 ~ 10 Working days based on the quantity

Packaging Details : wooden reel of self supporting GYTC8S figure 8 fiber optical cable

Application : Telecommunication,outdoor aerial,FTTH FTTB FTTX Network,Aerial/Duct,Municipalities/Co-ops/Utilities/Telco/Broadband/Enterprise

Fiber type : G652D,OM3,G657A2,50/125,62.5/125

Number of conductors : ≥ 10

Fiber count : 1-144 core

Jacket material : PE,LSZH

Product Name : Outdoor Figure 8 Core Fiber Optical Cable

Loose Tube Material : PBT

Package : 2km/roll

Strength member : Steel Wire

Contact Now

GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self-supporting

Decsripttion

2 4 6 8 12 core corning G652D G655 G657A outdoor armoured single multi mode self supporting GYTC8S figure 8 fiber optical cable.

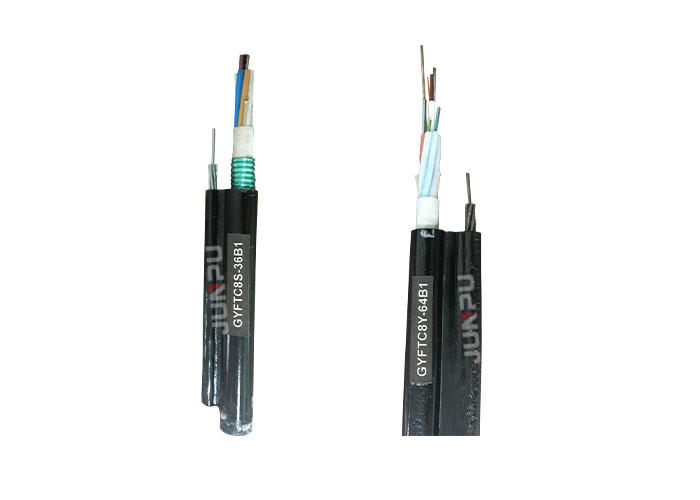

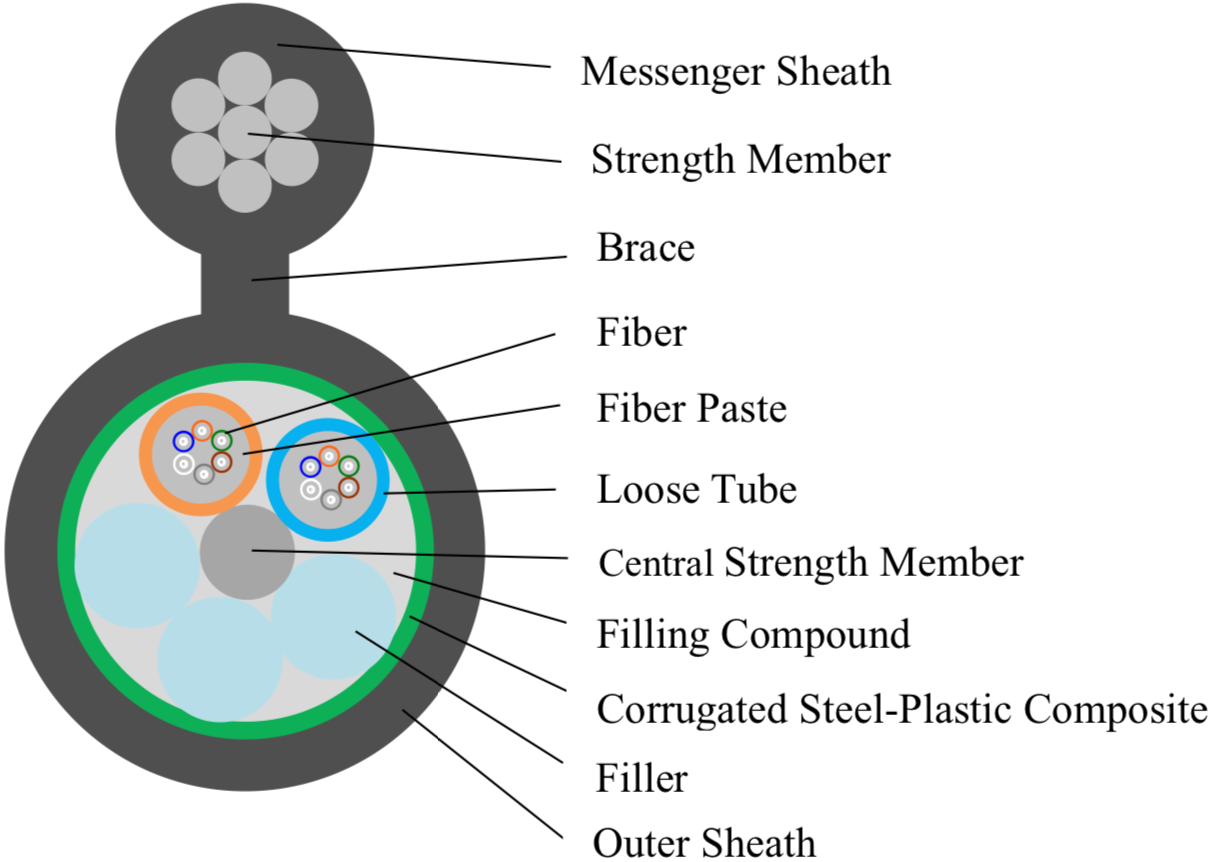

GYTC8S is a typical outdoor use fiber optic cable for aerial applications; GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8.

GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting

Application

Mainly adopted to the conditions that with the laying method of aerial and the span under 100m, speeding up the installation, and saving the messenger wire and optic cable pothhook.

GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting

Optical Characteristics

Strength Member	Dimension	2.4(0.8*7)mm
Strength Member	Material	Steel Wire
Outer Sheath	Dimension	(9.2±0.3)mm×(16.5±0.5)mm(4-24F)
		(9.6±0.3)mm×(16.9±0.5)mm(36F)
		(10.1±0.5)mm×(17.4±0.7)mm(48F/60F)
		(10.7±0.5)mm×(18.0±0.7)mm(72F)
		(12.2±0.5)mm×(19.5±0.7)mm(96F)
		(14.8±0.5)mm×(22.1±0.7)mm(144F)
	Material	PE
	Color	Black
Fiber Attenuation Coefficient in Cable	dB/km(1310nm)	≤0.36dB/km
Fiber Attenuation Coefficient in Cable	dB/km(1550nm)	≤0.22dB/km

No.	Characteristics		Parameter value
1	Tensile Strength	Short Term	2700N
		Long Term	900N
2	Crush Resistance Strength (N/100mm)	Short Term	1000N
		Long Term	300N
3	Min. Bending Radius (mm)	Dynamic	20D
		Static	10D
4	Temperature Range		-40~+60°C

GYTC8S SM 24 Core Single Mode Fiber Optic Cable Outdoor Self - Supporting

Package

We sincerely invite you to send us inquiry for further details.
Junpu Cares About Every Single Details Of The Product For You !
